UMotion doesn't seem to show Reference or Bind pose while Unity Avatar configuration menu does

Paul MPI 21 hours ago updated 21 hours ago 0

I'm currently working with this character:

https://sketchfab.com/3d-models/sophia-animated-003-animated-3d-woman-dc448c3be0e74f96a55fb475a13433cf

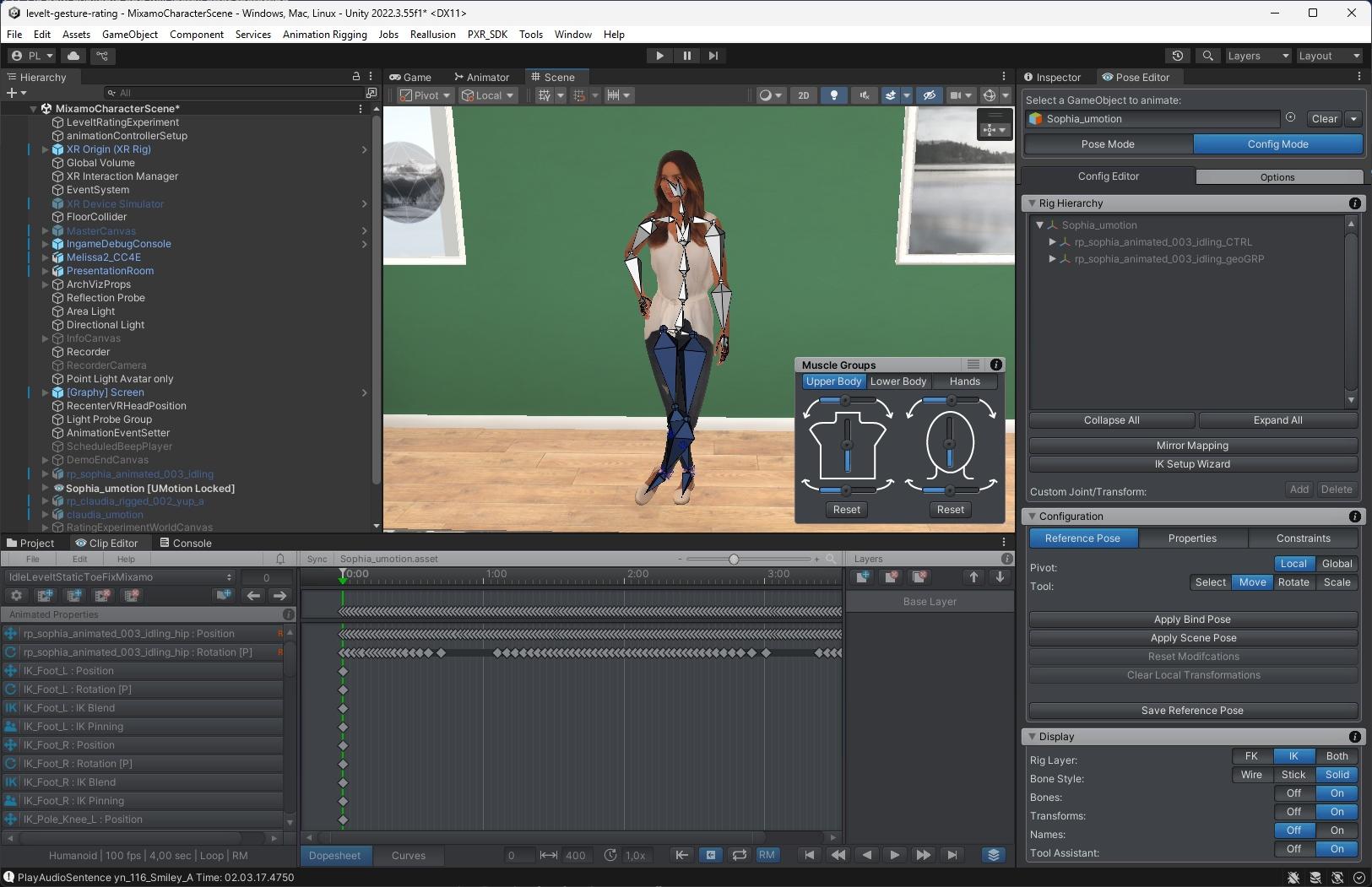

When I go into Config Mode and select "Apply Bind Pose" , nothing seems to happen. The character stays in the pose of the first frame of the included idling animation. I would expect she would go into a T-Pose when going into Config Mode and when pressing the "Apply Bind Pose" button. Should this happen?

Image 1584



When I inspect the character fbx myself and go into avatar configuration, I can see T-pose when pressing Pose-> Sample Bind-Pose or Enforce T-Pose. When I press Pose->Reset, I see the idling pose again.

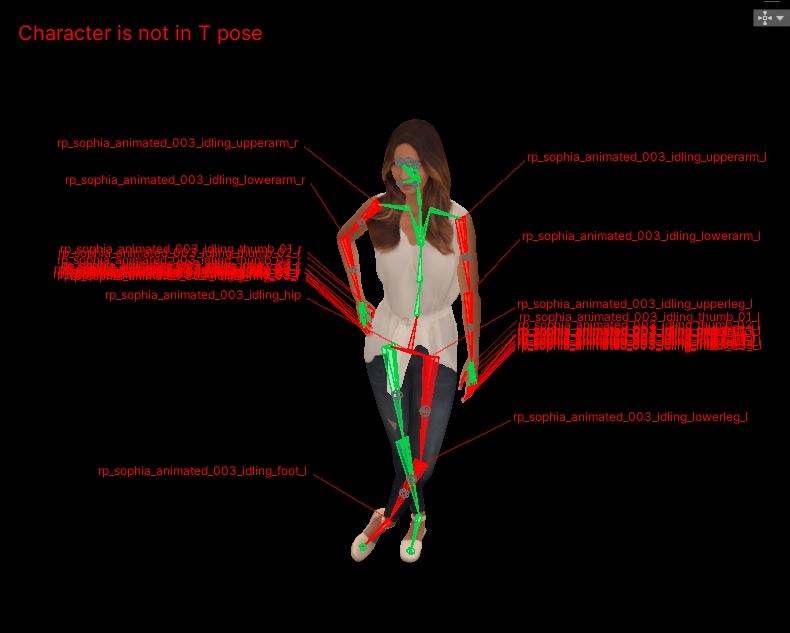

Pose-> Reset result:

Image 1586

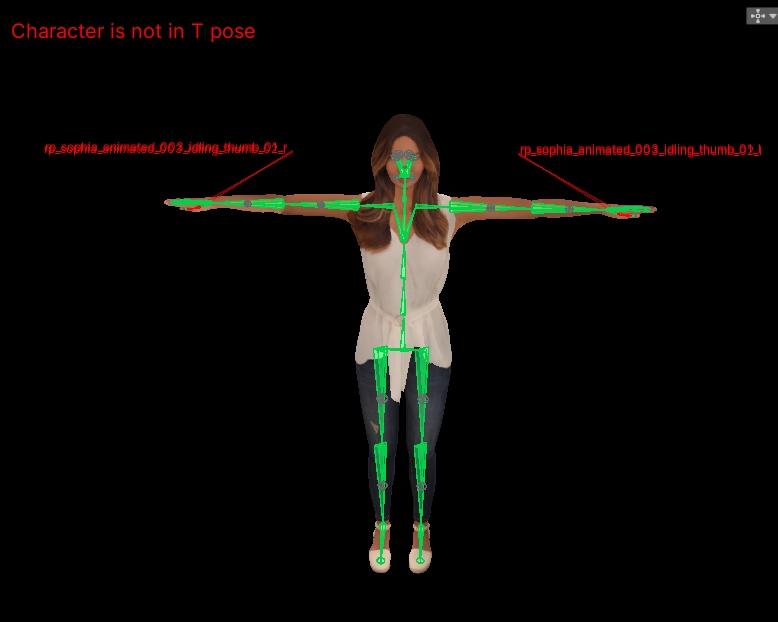

Pose-> Sample Bind Pose result:

Image 1587

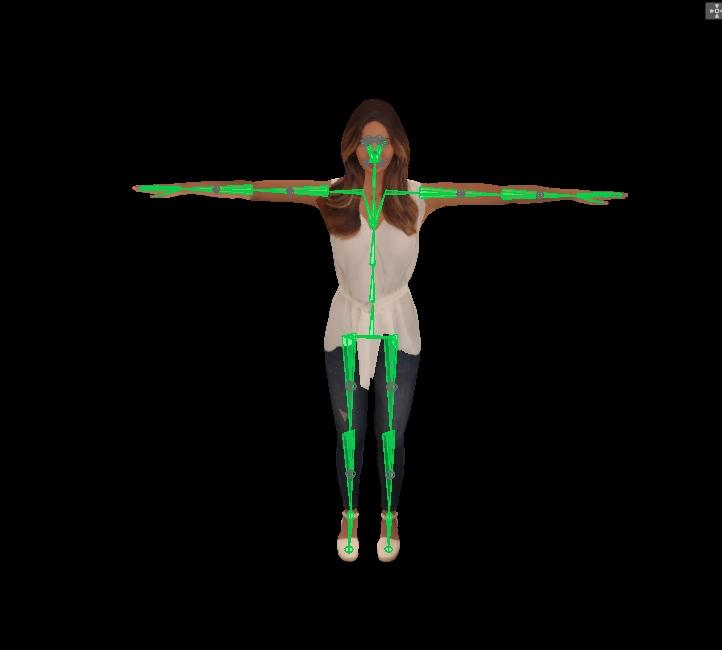

Pose -> Enforce T-pose result:

Image 1588

I'm mainly concerned that the reference pose (for animating) is a T-Pose and not the idling pose.

UMotion Version:
1.29p04
Unity Version:
2022.3.55f1
