How to have a fixed bone position?
I have models with multiple height. Is there anywhere I could set the pelvis bone at a fixed local position in Clip Editor? Right now the taller model is kind of floating in the air when sitting on a chair.
Answer
Hi Hata,
thank you very much for your support request.

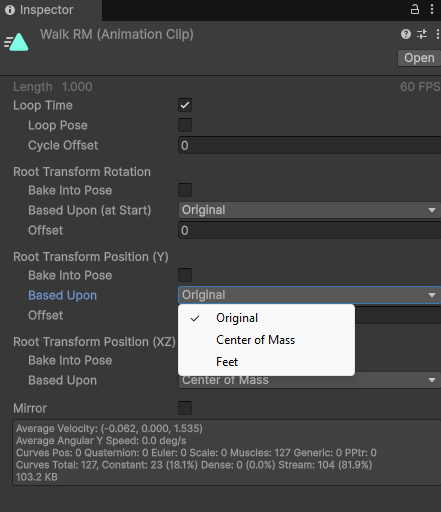

Try to play with the "Root Transform Position (Y)" settings (shown in the inspector when having the exported *.anim file selected):
As a last resort you could also get a desired effect using scripting: In your script, compare the actual pelvis height with the desired height and offset the whole model on the y axis to compensate. You can ease-in/-out the effect of the script during the sit down/stand up animation using a custom animation curve in your sit down/stand up animations.
Best regards,
Peter
